Dimensions and Lines v1.0.9

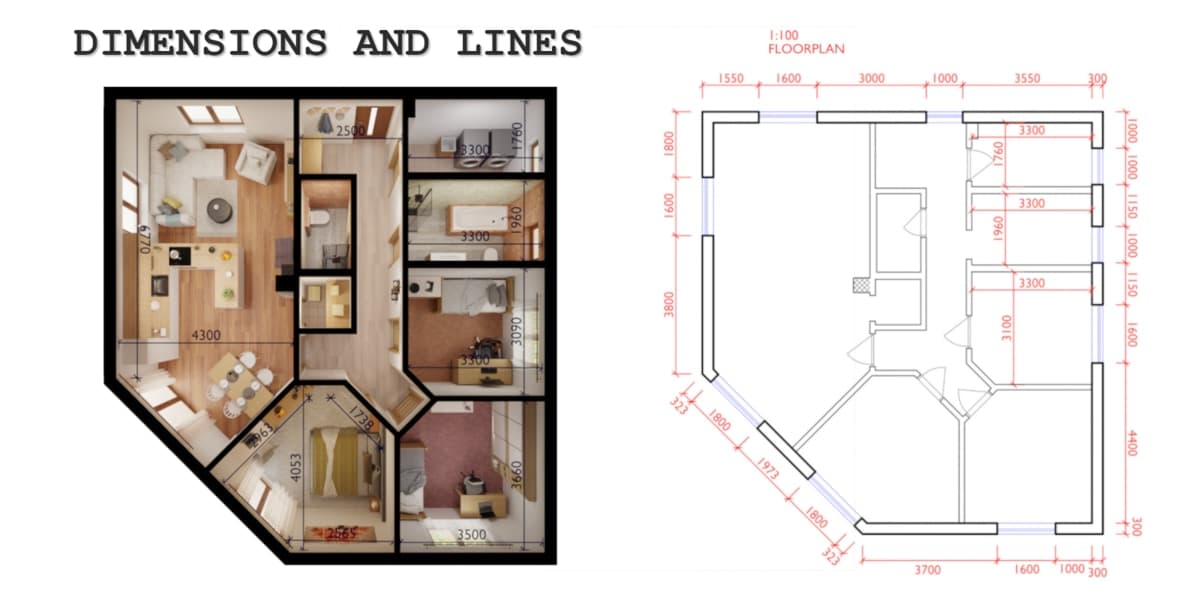

This Blender addon enables you to generate precise technical drawings and blueprint-style dimensions directly within the application. You can create lines, length dimensions, and angular dimensions as actual mesh geometry rather than annotations, giving your technical work a fully integrated workflow within your 3D environment.

The addon includes a dedicated snapping system designed for accurate placement and alignment of dimensional elements. You can configure cameras to match exact paper sizes and layouts, making it straightforward to prepare your technical drawings for output and printing with proper scaling and proportions.
